Name: States

Display Field: NAME

Type: Feature Layer

Geometry Type: esriGeometryPolygon

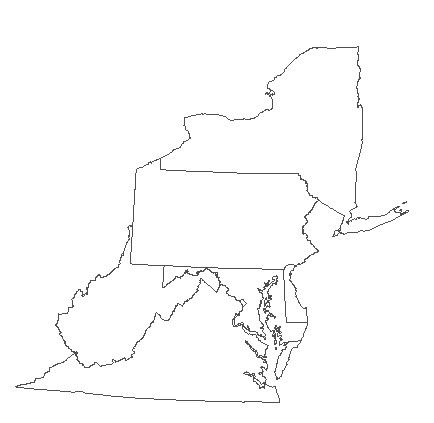

Description: Bay states (Maryland, Virginia, Delaware, West Virginia, Pennsylvania, New York) and Washington D.C., extracted from the 2014 cartographic boundary shapefiles from the U.S. Census Bureau's Master Address File / Topologically Integrated Geographic Encoding and Referencing (MAF/TIGER) Database (MTDB). Field Names and Definitions:Field NameField AliasDefinitionSTATEFPFIPS codeCurrent state Federal Information Processing Series (FIPS) codeSTATENSGINS codeCurrent state Geographic Names Information System (GNIS) codeAFFGEOIDAFF codeAmerican FactFinder summary level code + geovariant code + '00US' + GEOIDGEOIDState IDState identifier; state FIPS codeSTUSPSPostal Service Abbrev.Current United States Postal Service state abbreviationNAMEState NameCurrent State NameLSADLegal AreaCurrent legal/statistical area description code for stateALANDLand AreaCurrent land area (square meters)AWATERWater AreaCurrent water area (square meters)Source Data:U.S. Census Bureau TIGER Database, Cartographic boundary shapefiles - states (https://www.census.gov/geo/maps-data/data/cbf/cbf_state.html), 2014Processing Steps/Dates:The Bay states were extracted from the Census data, and reprojected to WGS84 UTM Zone 18N; 9/2015Contact Information:Cheapeake Bay Foundationkleaverton@cbf.org

Copyright Text: U.S. Census Bureau (2014), Chesapeake Bay Foundation (2015)

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -9314704.3671
YMin: 4375283.464299999
XMax: -8314398.888699999
YMax: 5201489.272100002
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [130, 130, 130, 0]
Outline:
Style: esriSLSSolid
Color: [0, 0, 0, 255]
Width: 2
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• STATEFP ( type: esriFieldTypeString, alias: FIPS code, length: 2 )
• STATENS ( type: esriFieldTypeString, alias: GINS code, length: 8 )
• AFFGEOID ( type: esriFieldTypeString, alias: AFF code, length: 11 )
• GEOID ( type: esriFieldTypeString, alias: State ID, length: 2 )
• STUSPS ( type: esriFieldTypeString, alias: Postal Service Abbrev., length: 2 )
• NAME ( type: esriFieldTypeString, alias: Name, length: 100 )
• LSAD ( type: esriFieldTypeString, alias: Legal Area, length: 2 , Coded Values: [03: City and Bourough] , [04: Borough] , [05: Census Area] , ...7 more... )
• ALAND ( type: esriFieldTypeDouble, alias: Land Area (square meters) )
• AWATER ( type: esriFieldTypeDouble, alias: Water Area (square meters) )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )
• Shape_Area ( type: esriFieldTypeDouble, alias: Shape_Area )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
